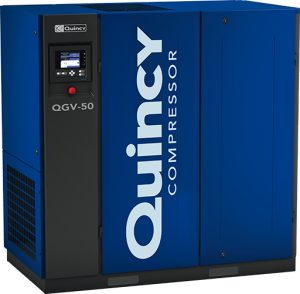

QGV 50 Air Compressor

QGV

QGV®️ 40-400 hp Variable Speed Compressors

A variable speed air compressor is equipped with a specially designed drive that controls and adjusts the operating speed. This offers a number of benefits, including delivering more constant pressure, protecting against power surges and lowering energy consumption. Many variable speed air compressor owners experience a significant reduction in their energy costs over time.

The Quincy QGV®️ variable speed rotary screw air compressor provides among the most stable of pressures available from a compressor with up to 85% turndown. At the heart of all QGV®️ compressors is a flex-drive airend with 100,000 hour design, providing low cost of ownership, easy maintenance and reliable operation. Enjoy real-time performance monitoring with graphical analysis and full-color, touch-screen control.

Contact Us

Badger XE Extreme Environment Package

The QFD (Quincy Frequency Drive) is designed specifically for compressor applications and features a unique thru-the-wall mounted design. This design separates the drive heat from the enclosure and protects the drive electronics to an IP5X protection degree. All components in the drive are protected from dust and moisture, thanks to a robust, NEMA4 rated enclosure. The QGV Badger XE NEMA4 VSD will operate trouble-free in the harshest conditions.

Quincy QGV Key Features

The Quincy QGV is a powerful variable speed air compressor featuring a specially designed drive that can control and adapt the operating speed as needed. You’ll experience maximum uptime with fewer disruptions and a lower total cost of ownership.

Advanced features of this reliable variable speed air compressor include:

  • Available in 40-400 hp capacity, including a 175 hp air compressor model for mid-range applications.
  • 65.4 – 2113.3 cfm, 75-150 psig.
  • Sound level as low as 68 dBA, ensuring quiet operation.
  • Exclusive inverter design for enhanced control.
  • Special operating mode that prevents rapid cycling during low-demand periods.
  • Badger XE Extreme environmental package that separates the drive heat from the enclosure and protects the internal electronics.
  • Heavy-duty intake filter.

The QGV air compressor is ideal for any industry with applications that require operating at partial loads. It’s also an excellent choice for customers who want better pressure control to reduce variations or require maximum efficiency.

Quincy QGV Performance

Like all Quincy Compressor products, the QGV will perform flawlessly every day, even in the most challenging conditions and dirty, dusty environments. A vast array of pre-engineered options enables you to customize the machine to your company’s unique needs, optimizing your compressed air results.

All QGV models undergo stringent factory testing, ensuring reliable, long-lasting performance. Your air compressor will arrive in ready-to-use condition and is easy to install — there’s no need to anchor it to the floor. Built-in holes allow you to complete the process with a forklift instead of a crane. The vertical draft cooling reduces ducting expense and complexity.

QGV Variable Speed Technical Specs

Model No. HP KW PSI ACFM Length Width Height Weight lbs. DBA
QGV-40 40 30 100 198.1 67 37.7 65.8 2277 67
QGV-40 40 30 125 172.0 67 37.7 65.8 2277 67
QGV-50 50 37 100 241.9 67 37.7 65.8 2277 68
QGV-50 50 37 125 212.8 67 37.7 65.8 2277 68
QGV-60 60 45 100 285.8 67 37.7 65.8 2277 72
QGV-60 60 45 125 257.0 67 37.7 65.8 2277 72
QGV-75 75 55 100 378.1 88 41.8 74.9 3123 73
QGV-75 75 55 125 341.2 88 41.8 74.9 3123 73
QGV-100 100 75 100 510.0 88 41.8 74.9 3132 72
QGV-100 100 75 125 463.6 88 41.8 74.9 3132 72
QGV-125 125 90 100 605.3 75,8 49.9 78.8 3747 78.6
QGV-125 125 90 125 552.3 75.8 49.9 78.8 3747 78.6
QGV-150 150 110 100 819.8 112 77.0 83.0 7582 78
QGV-150 150 110 125 738.0 112 77.0 83.0 7582 78
QGV-175 175 132 100 981.7 112 77.0 83.0 7911 78
QGV-175 175 132 125 892.8 112 77.0 83.0 7911 78
QGV-200 200 160 100 1122.4 112 77.0 83.0 8283 78
QGV-200 200 160 125 1027.9 112 77.0 83.0 8283 78
QGV-250 250 200 100 1509.4 150 81.0 89.0 11294 82
QGV-250 250 200 125 1366.7 150 81.0 89.0 11294 82
QGV-300 300 250 100 1821.7 150 81.0 89.0 11294 82
QGV-300 300 250 125 1679.4 150 81.0 89.0 11294 82
QGV-350 350 280 100 1988.0 150 81 89 13054 87
QGV-350 350 280 125 1818.0 150 81 89 13054 87
QGV-400 400 315 100 2113.0 150 81 89 13054 87
QGV-400 400 315 125 1974.0 150 81 89 13054 87



Maintaining Your QGV With Quincy’s Genuine Parts and Lubricants

Expertly designed and constructed Quincy air compressors provide many years of dependable service, and regular maintenance ensures they remain in peak operating condition. Hinged doors and removable panels provide easy access for fast, convenient service. Our authorized distributors are also available to perform routine maintenance and 24-hour emergency repairs.

We carry a complete selection of the parts and fluids you’ll need to keep your QGV air compressor running smoothly and reduce the risk of mechanical breakdowns. Our rotary screw fluids deliver superior friction protection, extending the rotor and bearing’s life span. Our inventory of genuine replacement parts maximizes uptime and efficiency and decreases total ownership costs.

Comprehensive Warranty Coverage for Your QGV Air Compressor

You can purchase a Quincy QGV air compressor with total confidence and peace of mind. Our Royal Blue Warranty is the best in the industry. You get 10 years of coverage on the airend and five years of protection for the motor, cooler, drive coupling and air/fluid receiver.

Our warranty is available at no extra cost and without a long-term service contract commitment. Just register your compressor, sample the fluids regularly and use genuine Quincy Compressor products when making parts upgrades.




Learn More About the QGV®️ Variable Speed Air Compressor

Discover all the benefits a QGV variable speed air compressor from Quincy Compressor can bring to your manufacturing or industrial environment. Contact the distributor near you for more information or contact us today.
