Air Filtration

Click a button below to navigate to that section on the page:

Standard Filters

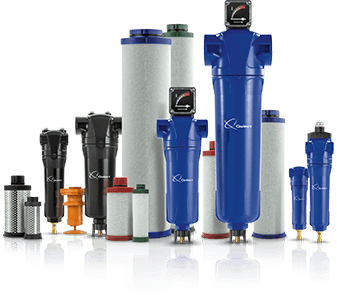

Quincy’s Standard Filtration lineup consists of the three most common types of filters used in compressed air systems: Particulate, Coalescer and Absorber. Aluminum housings with threaded NPT connections are used for flows up to 1500 cfm and steel housings with flanged connections are used for flows up to 10,500 cfm.

Download Brochure View Product

  • Particulate
  • Coalescer
  • Absorber

High Pressure Filters

Quincy’s aluminum alloy, 750 psig, high pressure filter lineup offers two levels of coalescing and an activated carbon absorber. The coalescers remove various levels of liquid aerosols and the activated carbon absorber removes vapor and odors. Quincy’s line of 316 stainless steel filters offer a stainless steel tie rod design on 1,500 and 5,000 psig models.

Download Brochure View Product

  • Aluminum alloy
  • 316 stainless steel
  • 750, 1500 & 5000 psig
  • 28 to 3000 cfm

Mist Eliminators

The Quincy Mist Eliminator is a heavy-duty coalescing type filter engineered to efficiently remove oil, particulate, and water from compressed air. By using a combination of impaction, interception and Brownian Movement, the Quincy Mist Eliminator achieves 100% efficiency in removing particles 3 micron and larger, 99.98% of 0.1 micron and larger and 99.5% of 0.01 micron and larger. Typical pressure drop is less than 1 psig. Average element life in continuous service is 10 years.

Download Brochure View Product

  • Double element design
  • Pressure drop < 1 psig
  • 10-year element life
  • Large tank volume
  • Optional no-loss drain
