You connect multiple air tools to a single air compressor by installing an air compressor manifold or splitter valve, which divides a single output into several outlets. Your system must handle the combined CFM requirements of all tools running simultaneously and include pressure regulators to control airflow to each tool. Ensure proper hose sizing and airtight connections to prevent pressure drop, which can reduce tool performance.
What Equipment Do I Need To Connect Multiple Air Tools to a Single Compressor?
To connect multiple air tools simultaneously, you need air hose splitters to distribute compressed air into separate lines and extra air hoses to run from each splitter outlet to individual tools. Choose between these types of air splitters depending on your application:
- Air compressor manifold: A permanent distribution block with multiple ports for organized multi-tool setups. Air manifolds can have 4, 6, or more ports, creating a central distribution station for an entire workshop.
- 2-way or 3-way splitter: Simple T and Y fittings with an internal chamber that branches out into two or three lines.
For temporary or mobile applications, basic splitters work fine. For permanent shop installations, manifolds with shut-off valves give you better control and easier maintenance.
How Do I Calculate CFM When Running Multiple Tools From One Compressor?
You calculate CFM for multiple tools by adding the CFM ratings of the tools you’ll operate simultaneously, then verify that your compressor can deliver that total airflow with a 25% safety margin to maintain consistent pressure. Quincy portable air compressors deliver reliable airflow from 4 to 13.7 CFM at 100 PSI, giving you the capacity to power multiple tools without performance loss. Operating beyond your compressor’s capacity causes pressure drops, reduced tool power and constant cycling that shortens equipment life.

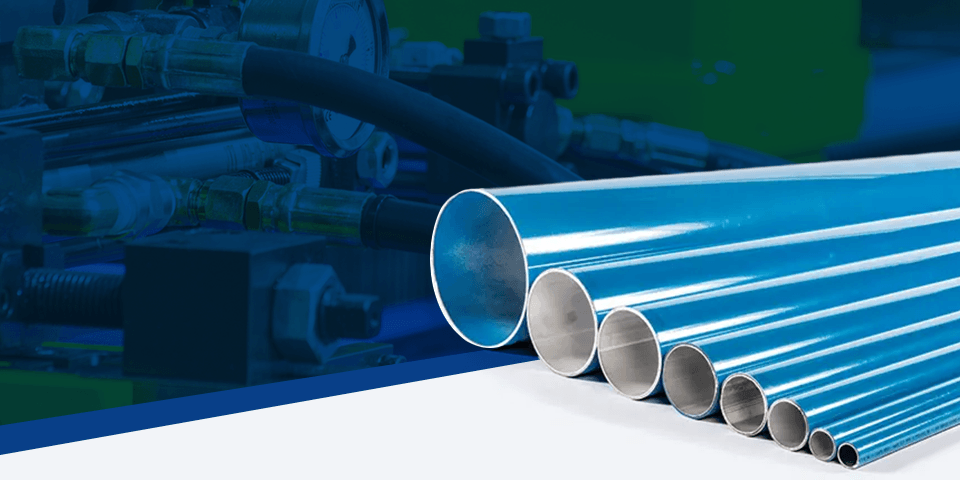

How Should I Arrange Piping When Connecting Multiple Air Tools to a Compressor?
You should arrange piping by positioning your manifold near the compressor, routing hoses overhead or along walls to avoid floor obstacles and keeping individual tool runs as short as possible to minimize pressure loss. In larger facilities, install multiple manifolds at different work zones rather than running extremely long hoses from a single distribution point.
Route individual tool hoses overhead using hooks or cable management systems to keep floors clear of trip hazards and protect hoses from damage by vehicles or equipment. Label each outlet with its regulated pressure setting so workers know which line to use for specific tools.
Get Expert Guidance on Multi-Tool Air Systems
Connect with a Quincy authorized dealer who can help you size the right compressor and distribution setup for your specific application. Our network of professional air experts understands industrial compressed air systems and can match you with solutions that deliver uncompromising reliability and performance.
