Nice-Pak Products – Gaining Reliability



Nice-Pak products

The Client

Nice-Pak is a leading manufacturer of sanitizing wipes, operating in Rockland County, NY.

The Challenge

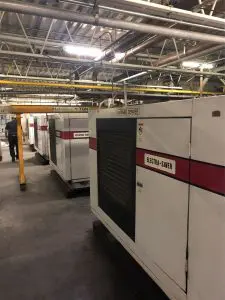

When the global pandemic hit in early 2020, their production targets soared. All four of their current 75 HP rotary screw compressors were now running. Each had about 20 years’ worth of age on them, and with all of them operating at once, the facility found itself without any sufficient backup.

Space was a concern with this job, as the facility’s available space was maxed out. They couldn’t move the compressors or enlarge the space they resided in, and an outdoor unit wasn’t an option either.

The last Sales Engineer to work with Nice-Pak pitched them on variable frequency machines on multiple occasions — he believed they could save substantial money by converting their fixed-speed machines into VFDs.



With space a concern, we obtained the industry’s toughest fixed-speed rotary compressor and got away from a horizontal exhaust, greatly alleviating the head load in the room and providing us with more available space.” – Nice-Pak



The Solution

Enter Quincy.

When we first visited the site, we found an overly hot compressor room. The room was small, and summertime temperatures hovered around 100+ degrees inside. Upgrading and adding 100 HP worth of compressors would only make the heat load climb even higher. The facility’s owner didn’t want to add additional exhaust fans to the room. Additionally, the last Sales Engineer had put the refrigerated dryers right next to the compressors, causing spikes in dew point due to the tremendous heat load.

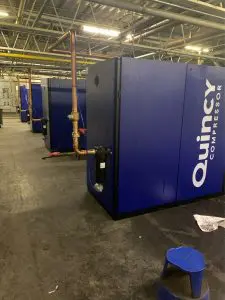

VFDs work just like computers, and computers don’t like excessive heat. We pitched sacrificing energy savings in the interest of gaining reliability, and there are now four QSI-100 compressors running in that compressor room. Since fixed-speed compressors cost considerably less than variable frequency compressors, the customer knew we were trying to push for the most logical solution.

Nice-Pak obtained the industry’s toughest fixed-speed rotary compressor and got away from a horizontal exhaust, greatly alleviating the heat load in the room. We also suggested moving the dryers from the compressor room to a tiny yet functional space downstairs. Doing so protected them from the heat load in the room and secured them at a more reliable dew point. Lastly, we suspended a dry receiver tank from the ceiling above the dryers to provide the plant with an adequate reservoir of clean air.





Download Case Study



View Quincy Compressor case studies

Author

Tom McCartney

Send an Email

Tom is a dedicated Sales Engineer out of the Quincy Northeast Region. With more than 10 years of sales experience, Tom is extremely well-versed in designing solutions that meet the exact goals and specifications of his customers. Having represented the Quincy Compressor brand for the last 3 years, Tom is accomplished in the design and engineering of compressed air systems, centralized vacuum designs, and process chilling applications.
